Bullet Feed Return Spring Attachment

Support Portal  »  Knowledgebase  »  Viewing Article

  Print

This is applicable to Bullet Feed Kits produced 2019 and earlier



We have found that the addition of a lightweight return spring improves the function of the bullet feed kit. This spring is attached to the die plate via the pivot bolt and has two legs which hook into the bullet feed body. It’s purpose is to apply downward pressure to the bullet feed body.



We no longer have this spring available for purchase individually. You may return your existing bullet feed kit to Lee Precision and receive 1/2 merchandise credit toward a new kit. returnform.pdf (leeprecision.com)

Step 1 Attach return spring to die plate as shown. Pivot bolt should pass through both loops in return spring.

Bullet Feed Assembly Step 1

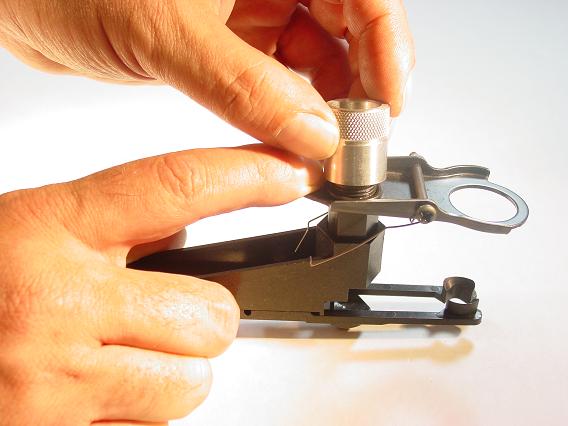

Step 2 Assemble die plate to bullet feed body. Hook two legs of return spring into bullet feed body as shown.

Assemble Die Plate to Bullet Feed Body

Step 3 Re-attach feeder link and crank with second nut. Feeder link must be free to pivot - don’t over tighten nut.

Re-attach feeder link and crank with second nut
