How to attach press lever on Breech Lock Challenger, Value Turret Press and Pro 1000

Support Portal  »  Knowledgebase  »  Viewing Article

  Print
1. Slide heavy washer on to bolt, screw bolt into black lever clamp.
ad99bbfaeb22c4a770212388cb4c2b4fab4d9457?t=5362b833a84ecd710af49678919526be
2. Slide handle clamp assembly into toggle and orientate hole in lever clamp with radius in toggle.

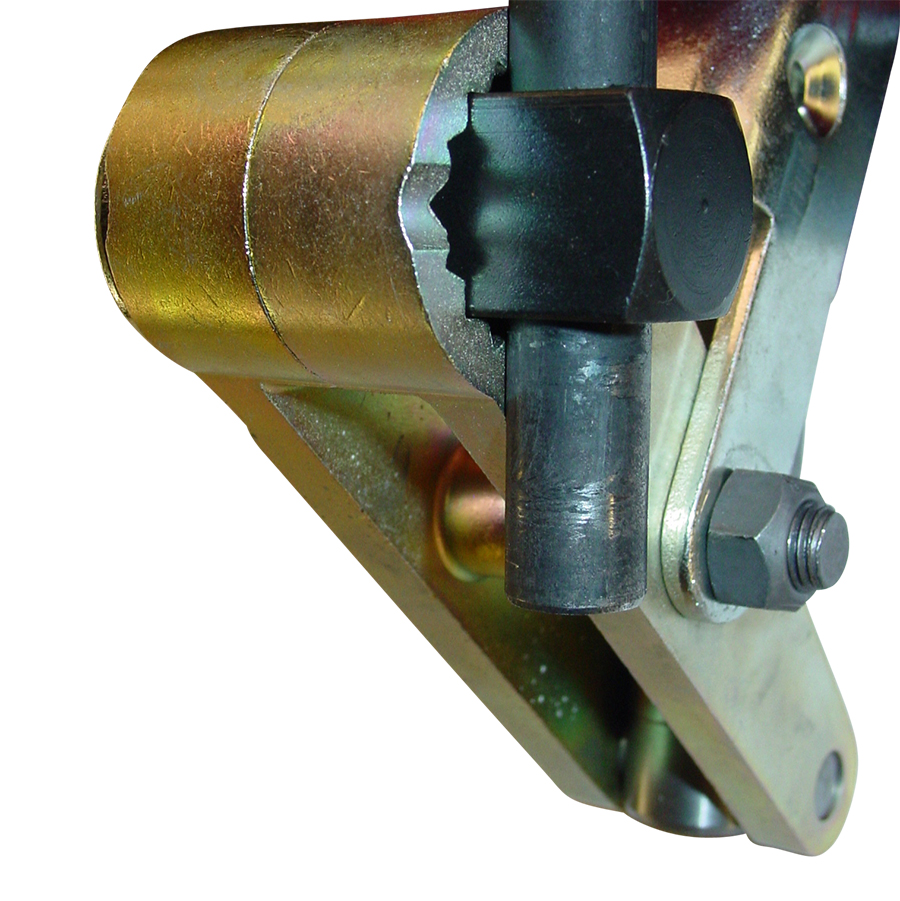

5485d0e11820d319b5f7cd671dd38a4b2798416f?t=e261c2000794f627c66459472c67aa21 3. Slide handle into the lever clamp assembly, make sure the handle passes completely through.

c3ca770069aceca65d6a5ad85fb9600090cba0c0?t=e503cdfca52a724b40fcf1be04d8c04f

4. Snug bolt with a 1/2” socket or wrench, tighten securely to 25 ft/lbs. minimum.
