Pro 4-20 Clean Out Valve

Support Portal  »  Knowledgebase  »  Viewing Article

  Print

The best way to free the clog from the valve is to remove the base to get access to the valve and push a 1/16" drill inside to clean out the contamination. We do not recommend disassembling the top or bottom end of the valve liner, as it may be very hard to re-assemble once apart



Tools needed:

Flat blade screwdriver
Phillips screwdriver

1/4" nut driver

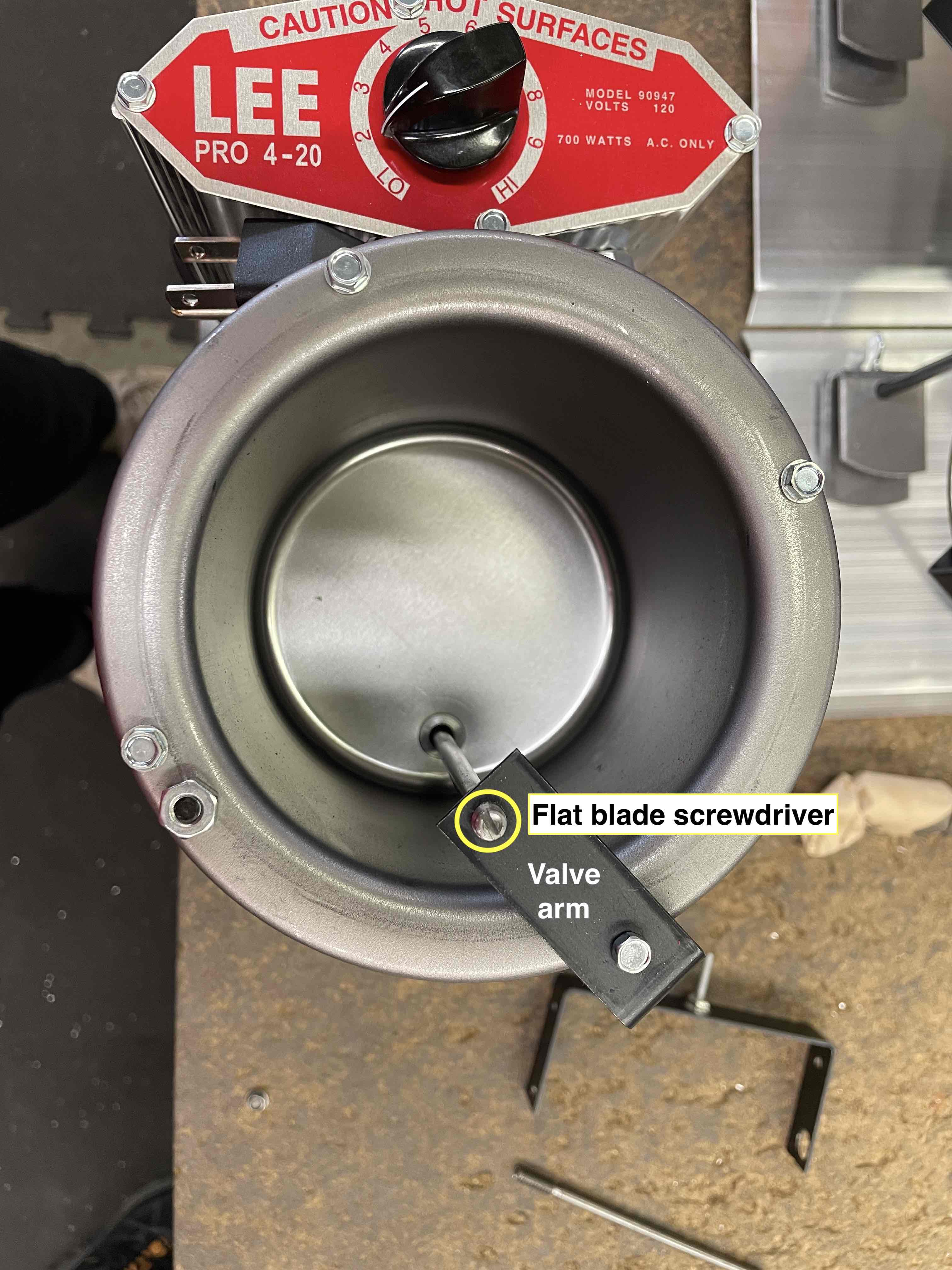

1) Remove the valve rod with a flat blade screwdriver

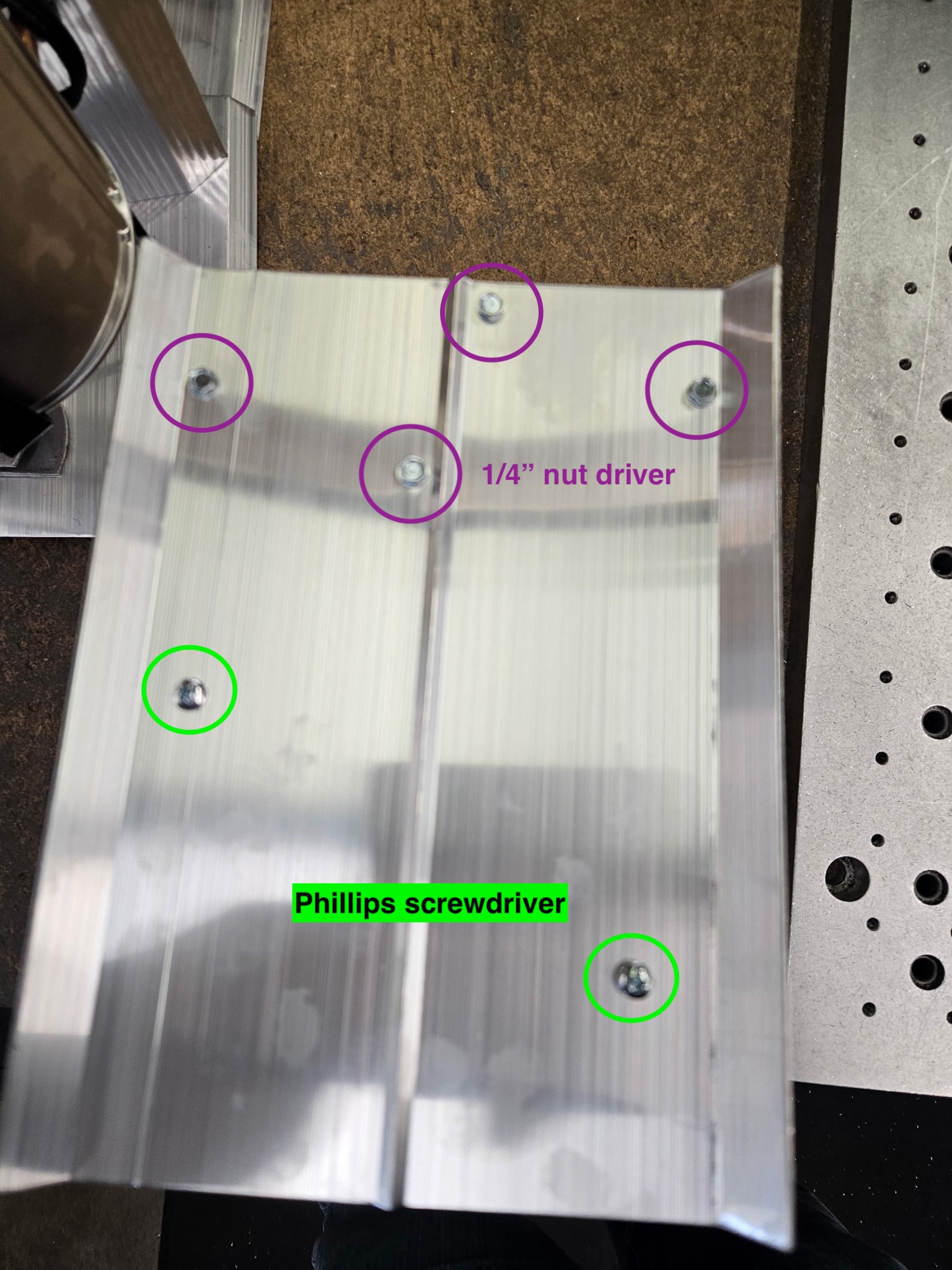

2) Flip the melter over with the base facing you and remove the qty. 2 Phillips Screws and qty. 4 # 8 Screws with a 1/4" nut driver

3) Run a 1/16" drill or smaller or an unfolded paperclip into the valve to free the contamination/clog.
